Universal Cutter Grinder
MODEL ID:PP-32N

Universal Cutter Grinder

1. The wheel heads can be rotated 360° and be installed two wheels. Just rotate the wheel head, when need to grind the tool of different materials.



2. Adopts the precision 4" 6-jaw awl type chuck. It can clip stably. At the same time, it can grind the cutting edge and web thickness of drills in one set-up. The both sides of drill angle and the edge length are equal. It could keep the accuracy of the center of drill without offset.



3. Easy operation, grind fast and precisely.



Patent No. 75717
Replacement-free unique cam

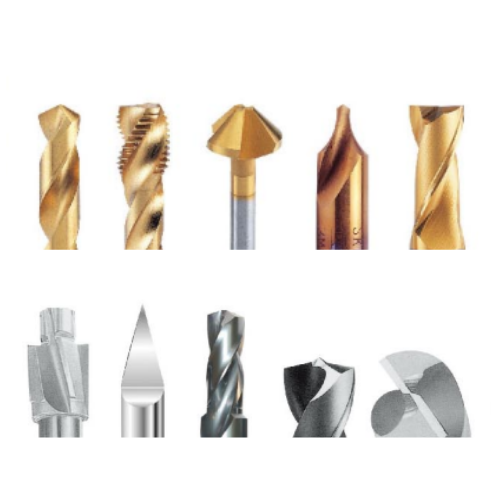

The types of tools to be ground:
Drill, step drill, center drill, spotting drill, countersink cutter, tap, chamfer cutter, edge of end mill, engraving tool, sheet metal drill, oil seal trimming tool, round bar, etc.

Standard Accessories:
1. 4" 6-jaw Awl Type Chuck-1 SET
2. Chuck Handle-1 PC
3. Grinding Wheel(Type:6A)-1 PC
4. Grinding Wheel(Type:11A)-1 PC
5. Grinding Wheel Flange-2 SETS
6. Flange Wrench-1 PC
7. Morse Taper Sleeve-1 PC(No.3)
8. Screw Pin-6 PCS
9. Work Light-1 SET
10. Tools for General Use-1 SET

Optional Accessories:
1. SDC Electroplated Grinding Wheel
2. CBN Electroplated Grinding Wheel
3. Morse Taper Sleeve (No.2)
4. Work Cabinet
Model No.PP-32N
Grinding CapacityΦ2mm~Φ32mm
Longitudinal Travel of Table115mm
Horizontal Travel of Table135mm
Rotating Angle of Wheel Head360°
Point Angle of Drill90°~180°
Size of Wheel125x50x31.75mm
Speed of Wheel50HZ 2900RPM | 60HZ 3500RPM
Horse Power/ Voltage3/4HP (560W)
Net Weight/ Gross Weight90KGS/122KGS
Packing Size (LxWxH)95x55x68CM
with Work Cabinet100x77x154CM
Net Weight/ Gross Weight125KGS/170KGS
