Diamond & PCBN Tool Grinder
MODEL ID:PP-DM
Diamond & PCBN Tool Grinder

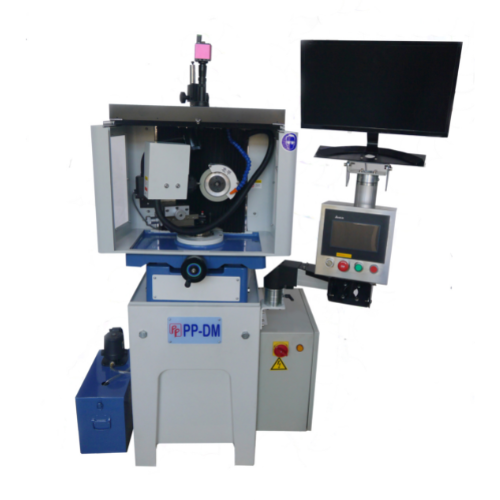

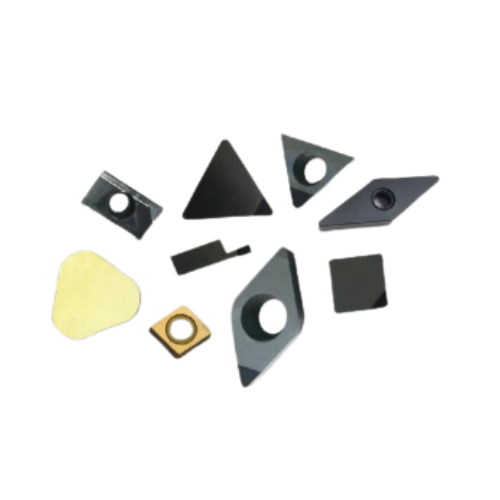

The machine is mainly used for grinding PCD, PCBN, CBN and carbide tools. You can position the tool precisely and make sure the position, set the center of circle and radius by CCD and monitor. The CCD is for checking the surface of tools and measure the tools.
Remark: For the diamond/ PCD form tools, we could offer customized service.
Standard Accessories:
1. Vitrified Diamond Grinding Wheel-1 PC
2. Grinding Wheel Flange-1 SET
3. Flange Wrench-1 PC
4. Work Light-1 SET
5. Cooling System-1 SET
6. CCD & Monitor-1 SET
7. Rock Type Lubricator-1 SET
8. Variable Frequency Drive-2 SETS
9. Tools for General Use-1 SET
Optional Accessories:
1. Vitrified Diamond Grinding Wheel
2. Vitrified Diamond Grinding Whee (Made in Japan)
3. Grinding Wheel Flange
4. Oil Stone
5. Auto Lubricator
6. Hollow Rotary Reducer
7. Human Machine Interface
8. Measurement Software for CCD
9. Full Guard
Tools for General Use:
1. Hexagon Wrench-10 PCS
2. Screwdriver-1 PC
3. T-Type Wrench-1 PC
4. Open Wrench-4 PCS
5. Hexagon Wrench for Lens-2 PCS
1. Vitrified Diamond Grinding Wheel-1 PC
2. Grinding Wheel Flange-1 SET
3. Flange Wrench-1 PC
4. Work Light-1 SET
5. Cooling System-1 SET
6. CCD & Monitor-1 SET
7. Rock Type Lubricator-1 SET
8. Variable Frequency Drive-2 SETS
9. Tools for General Use-1 SET
Optional Accessories:
1. Vitrified Diamond Grinding Wheel
2. Vitrified Diamond Grinding Whee (Made in Japan)
3. Grinding Wheel Flange
4. Oil Stone
5. Auto Lubricator
6. Hollow Rotary Reducer
7. Human Machine Interface
8. Measurement Software for CCD
9. Full Guard
Tools for General Use:
1. Hexagon Wrench-10 PCS
2. Screwdriver-1 PC
3. T-Type Wrench-1 PC
4. Open Wrench-4 PCS
5. Hexagon Wrench for Lens-2 PCS
| Model No. | PP-DM |
| Longitudinal Travel of Cross Work Table | 70mm |
| Horizontal Travel of Cross Work Table | 65mm |
| Spindle Center Height | 150mm |
| Variable Swing Distance | 0-15mm |
| Variable Swing Speed | 0-60 Hz/min. |
| Variable Swing Position | 250mm |
| Variable Spindle Angle | -5°~25°±10° |
| Size of Wheel | 150x40x40 mm |
| Speed of Spindle | 0-3000RPM |
| Voltage | 220V |
| Net Weight/ Gross Weight | 350KGS/424KGS |
| Packing Size (LxWxH) | 104x104x195CM |
