MODEL ID:PP-100N

Universal Tool & Cutter Grinder

1. For dressing grinding wheel, set the diamond dresser on the chuck and adjust the chuck grinding angle and reciprocating feed of the wheel head. The wheel motor can be adjusted 160mm vertically and rotate 180°. It can increase the function of machinery.


2. Adopts the precision awl type chuck. It can clip stably. At the same time, it can grind the cutting edge and web thickness of drills in one set-up. The both sids of drill angle and the edge length are equal. It could keep the accuracy of the center of drill without offset.


3. Easy operation, grind fast and precisely.

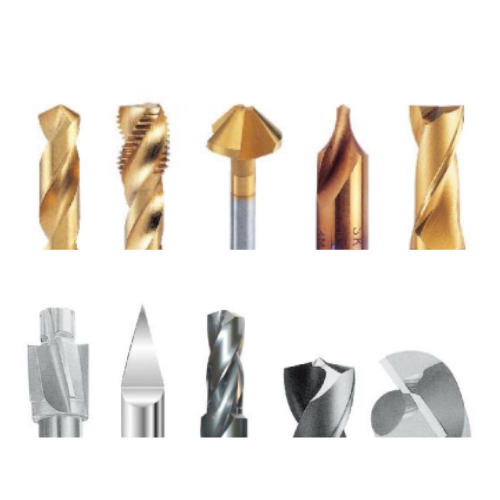

The types of tools to be ground:

Drill, step drill, center drill, spotting drill, countersink cutter, tap, chamfer cutter, edge of end mill, engraving tool, sheet metal drill, round bar, etc.

Standard Accessories-80N:
1. 9" 8-jaw Awl Type Chuck-1 SET
2. Chuck Handle-1 PC
3. Grinding Wheel(Type:7A)-1 PC
4. Grinding Wheel Flange-1 SET
5. Flange Wrench-1 PC
6. Morse Taper Sleeve- 4 PCS (No.3,4,5,6)
7. Cam-5 PCS (No.4,6,8,9,A2)
8. Auto Cycle Motor-1 SET
9. Cooling System-1 SET
10. Work Light-1 SET
11. Tools for General Use-1 SET
12. Work Cabinet-1 SET

Optional Accessories:
1. SDC Electroplated Grinding Wheel
2. CBN Electroplated Grinding Wheel
Model No.PP-100N
Grinding CapacityΦ5mm~Φ100mm
Longitudinal Travel of Table240mm
Horizontal Travel of Table180mm
Vertical Adjustment of Wheel Head160mm
Clearance Angle of Drill0°~18°
Point Angle of Drill40°~180°
Size of Wheel180x50x31.75mm
Speed of Wheel50HZ 2800RPM | 60HZ 3360RPM
Horse Power/ Voltage2HP (1500W)
Net Weight/ Gross Weight316KGS/386KGS
Packing Size (LxWxH)113x100x155CM
