Features:
1. Taper Type of Spindle: BT30, BT40 and BT50
2. On-site grinding. The spindle is disassembled. Reduce downtime.
3. Extend the servcie life of the spindle
4. Improve machining accuracy and extend the life of cutting tool.
5. The precision after grinding:
Spindle taper precision 0.005mm↓
Standard bar (300mm) Precision 0.03mm↓
Standard Accessories:
1. Open Wrench 16 - 1 PC
2. Hexagon Key M4 - 1 PC
3. Lubricator - 1 SET
4. Oil Stone - 1 PC
5. Special Grinding Head CBN#200 - 1 PC

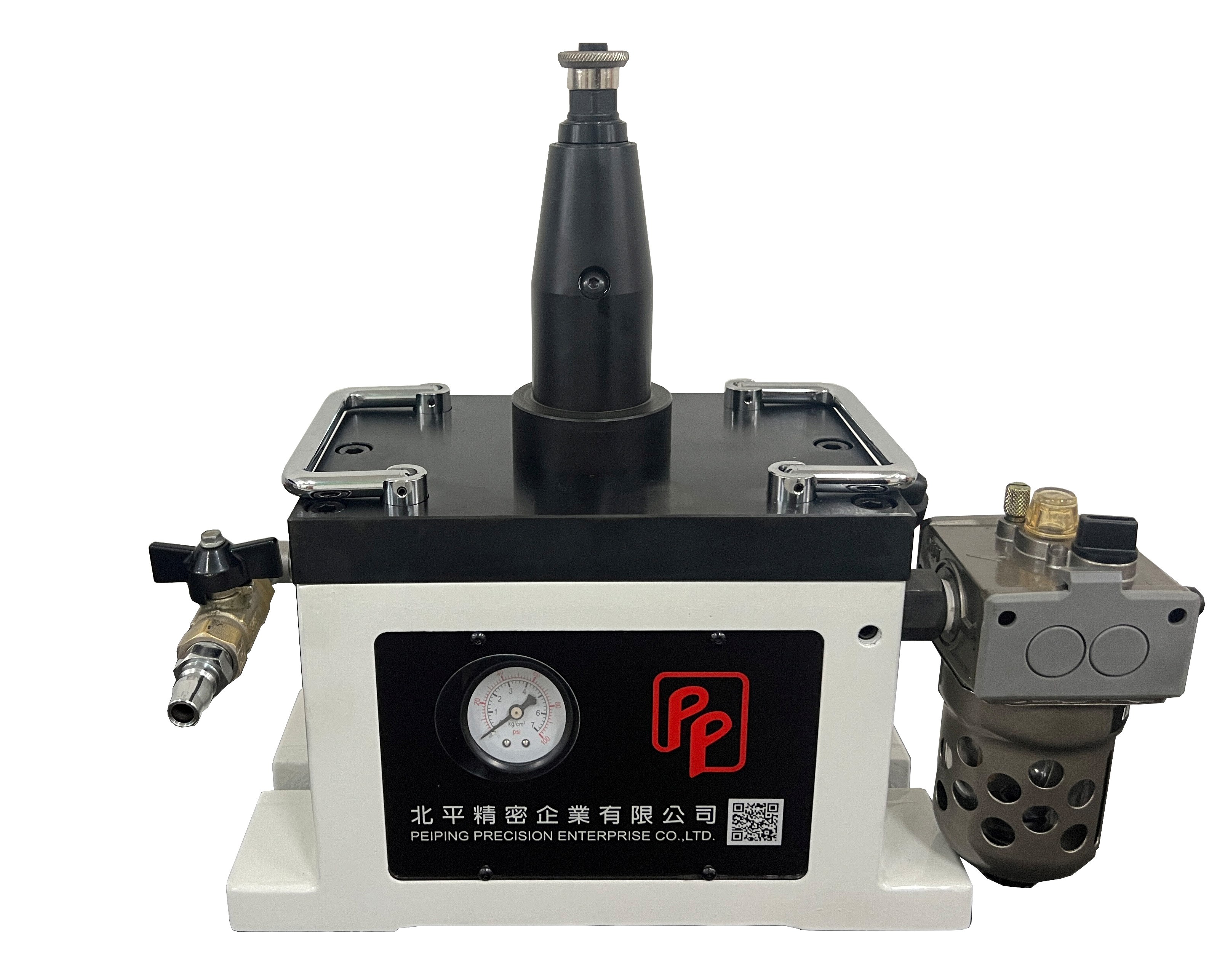

| MODEL | PP-A3 |
| Griding Size | Vertical and horizontal type CAT 40/50; BT 30/40/50; DIN/ISO 30/40/50 |
| Supply | Air Compressor - 7KGS/CM2 |
| RPM | 18000RPM |
| Net Weight/ Gross Weight | 21KGS/ 29KGS |
| Machine Size (LxWxH) | 35x14x35CM |
| Packing Size (LxWxH) | 54x43x47CM |
| Remarks | There would be chips stick on CBN grinding wheel head. Use white oil stone to remove it to prevent fretting. |
